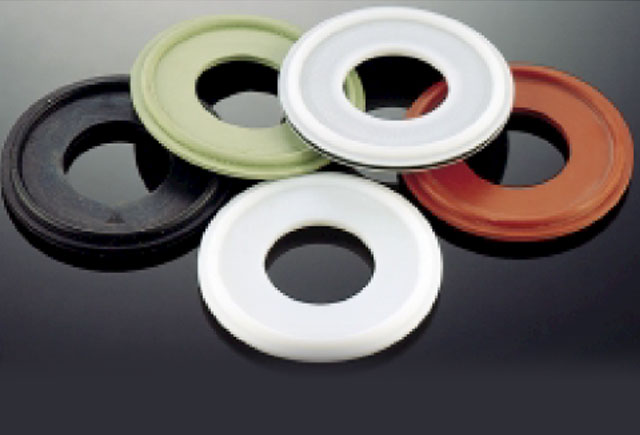

Tri-Clover Gaskets
(Available in Viton, Silicone, Neoprene, EPDM Rubber and PTFE )
We manufacture Tri-Clover Gaskets in :
- 100% Pure Food grade Silicone Rubber.
- Conforms to FDA 21 CFR.177.2600 & USP Class VI Requirements
- Silicone Tri-Clamp Gaskets are available with collar for better‘ grip and also without collar.
- Available in Red, White, Black & Transparent colours.
- Available in Platinum Cured Silicone Rubber.
| Size | OD (D3) | PCD (D4) | ID (D5) |
| ½” | 34 | 27.5 | 10.9 |
| ¾” | 34 | 27.5 | 15.4 |
| 1” | 50.5 | 43.5 | 22.8 |
| 1 ½” | 50.5 | 43.5 | 35.8 |
| 2” | 64 | 56.5 | 48.8 |
| 2 ½ | 77.5 | 70.5 | 60.5 |
| 3” | 91.0 | 83.5 | 73.1 |
| 4” | 118.0 | 110.0 | 96..0 |
